How To Build a Better Self Bailing Whitewater Raft

The best way to build better rafts, is to get people involved who know something about raft performance. Those people are our customers. Customers with diverse experiences who run trips in Colorado, New Mexico, Arizona, Texas, Mexico, Idaho, Montana, South America, Nepal, and Africa, and Denmark. We do not have rafts in all of those places, but we do have cats or rafts in those places, and we do get a lot of great feedback from our customers who use our inflatables there.

When we start talking about raft designs, customers will often say... We did not know you made self bailing rafts. We have been working on self bailing raft concepts since 1990. that is 27 years out of 35. We have seen a lot, and we have listened to a lot of customers. We live vicariously through our customers experiences, and we want to know what those experiences are, even if they are not good, we want to hear about them and adjust our products to do a better job. We pride ourselves on customer feed back.

We have made huge mistakes, and we have watched our competitors make them too. We pay attention to what works and what doesn't, and we do not stick with a design feature that is goofy just because we have a lot of design time or money invested in a product or a process, or because we want you to believe we have the best gimick. For these reasons, we use quality inflatable fabrics that are designed to hold air, and have good coating adhesion. We do not use zippers, bladders, or coatings on the inside or outside of our rafts. Our air chambers are 100% welded and will not have a glue failure over time. We use materials that have proven to be some of the most UV resistant. For all of these reasons, we can offer a 10 year warranty, and a 5 year warranty for Outfitter use.

Please keep in mind that we still have 95% of our boats that we made in 1988 still in use.



The engineering of the product
:

General shape:

We start off with a general shape of a product in profile and you tell us if this is something that looks good for your purpose. Some customers like more or less kick depending on what they want to do with the raft. Width for cargo load, (usually a cooler size) and main section that helps determine the rowing frame size. We will adjust these if necessary. We can also do tapered tube designs.

We discuss features like the length and kick of individual sections, and how that effects the drop stitch floor placement, The placement of the Drop stitch floor for tracking and self bailing, and the trade offs we get with different designs. Please remember that we can adjust the placement of d rings handles, valves, and grommet strips to make it as convenient as possible. We ask you to consider smaller cross tubes (thwarts ) for foot holds instead of using foot cups. Please see the concept used on the Fat Boy Raft, and the Culebra Grande, and Outfitter Culebra frameless cataraft models in our Photo gallery where we discuss products in more detail.

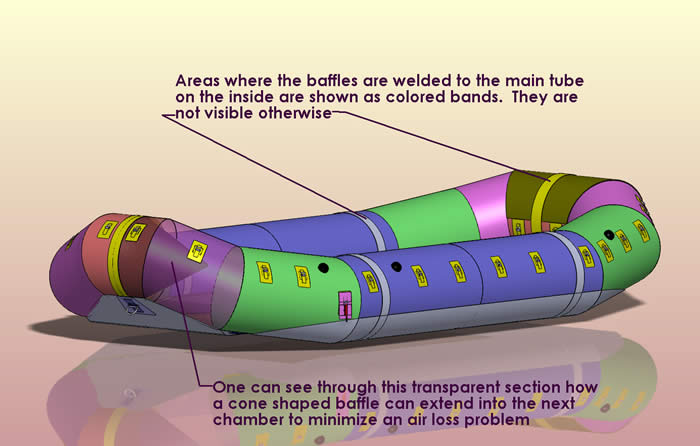

Baffles have a cone shape, and extend into the next chamber some distance, depending on the diameter of the tube.  We try to place the baffles in a place that is easy for manufacturing that distributes the weight evenly if there were a failure, and where they are not in a place where we have to put a D ring.  The area that the baffles are welded is designated with a colored ring on all of the design JPEGS. This image also shows how a baffle cone would look if it were inflated into a damaged chamber. It is ideal to keep evenamounts of air in all chambers so there is no stress on the baffle..

We tend to stay with a design that has a removable Drop stitch floor. At this time I think it is important to explain how it works

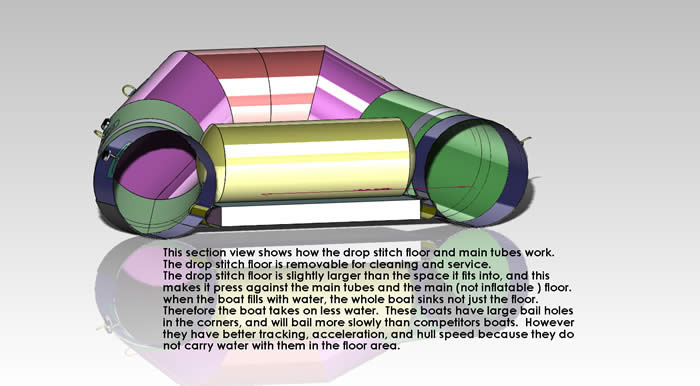

One can see the parts interfering with each other. This is how we fit the inflatable together to take advantage of that interference for a tighter floor fit.

For lace in floor models in 2017, We will be using 1 grommet strip to accomplish this function. PLease have a look at this new process and let us know if you agree or disagree with any of the ideas we proposed here.

An inflatable floor of this type increases flotation, and hull speed, but it also limits the amount of bailing speed. It also does not take on as much water to begin with. Regardless we think it is important to show the bail hole system also.

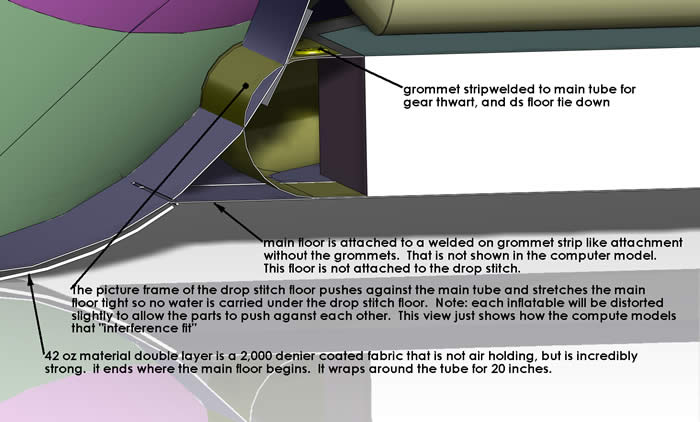

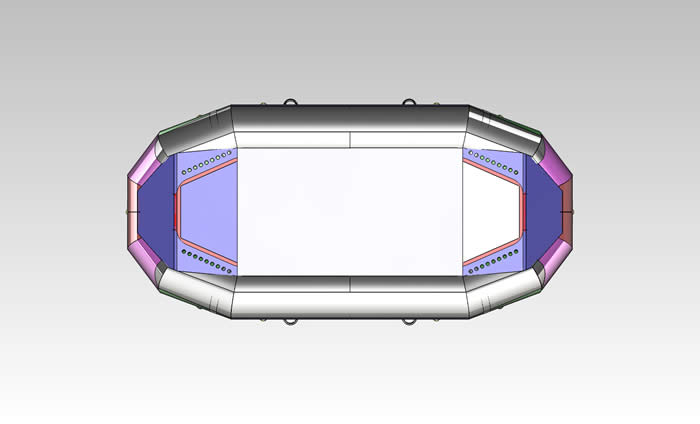

The bail holes are through 2 layers of heavy welded fabric, Even so if this drop stitch floor had to be removed, the bail holes could be patched and the boat could be run as a non bailer. That feature could save a river trip. It keeps the raft at a functional level Always. We have even built them with the bail holes uncut so the drop stitch can act as a planing surface for motors, instead of acting like a self bailer. That was a bit of a stretch for us, but it seems to work in Iowa for fishing.

Speaking of fishing... This is what our customers on the San Juan are telling us about our Dragon Fly Fly fishing raft.

Here are the points they love about the boat:



1)      Very stable

2)      Fast and quick response so very little effort to head down stream and get up speed

3)      Holds a line better than any boat they have rowed and quick to spin to keep the line from getting tangled

4)      Great in the wind so much better than anything (A conbination of tapered tube design and smaller tubes)

5)      Light weight want to keep the frame weight down where 2 people can lift it easily

6)      The draft is amazing, they are going places where no drift boat goes (Durring the drought of 2002, we took these boats down the san juan fully loaded with families at 200 CFS!)

7)      This is the ultimate boat for fishing! These guys use Dories a lot on low water, so they are thrilled with this boat.





WW

W What effect does high silt content of a river have on This style of boat, and what is being done to adress it.

A new floor design for 2017 that adresses the issue in a different way

Pl

I would highly suggest that you go to this web site and have a look at some of the self bailing rafts we have done to date.

All of these rafts are available for purchase, and most were a design collaboration with customers who knew what they wanted.

Look here if you would like to read more about the materials we use to make our self bailing rafts.

In the summer of 2012 we made our first stand up paddle boards with rockered drop stitch. We decided to make some of our rafts with rockered floors too. these boats are mostly fly fishing boats, but we may use the same technology eventually in some of our other self bailers. Both the raft floors and the ISUP designs have the new miter end design.

SUP technology is used to make a better performing raft

In summary:

Engineering is an important part of any product, and the people who know the most about what needs to be done for a product are those who use the product on a regular basis. We make no assumption that we know more about rafting than our rafting customers. Therefore we encourage our rafting customers to contact us about any of our designs. We have a number of them and the size, width, kick, taper tube or straight, D ring placements and valve placements usually come from our customers. It looks like 2016 will be a banner year, and We are heavy on orders for all kinds of things. So we may not be able to make custom rafts this spring. We encourage our customers to collaborate with us on design, and Edrawings is a great way to do that, but it may need to be later in the year when we have some breathing room. That is another reason to have a look at custom rafts we have already made.
