Custom Tube Styles
Prices are for 1 set (2 tubes) Tubes only, with the specifications listed here.
The links on the left give dimensions of the tube and standard valve, handle, and D ring locations, as well as over all length and diameter.
When you click on a link, the picture comes up on the screen, in the upper
right there is a move or close icon. One can open up multiple pictures, and move
them around. When you click on one, it automatically comes to the front. This
gives a rapid view and comparison of variations and tube diameter. If the full picture does not come up, drag the bottom right corner out to get a full view.
Tube
Style |
Diameter |
Length |
waterline |
Chambers per tube |
2"D-rings per tube |
1" D-rings per tube |
Handles per tube |
Dbl Bottom |
Baffles |
Price in USD |
||
| Pac Cat | 12" |
10.5' |
102" |
1 |
0 |
0 |
0 |
0 |
0 |
|
||
| Fat Cat | 16" |
11' |
73" |
1 |
0 |
0 |
0 |
0 |
0 |
|
||
| Cut1 | 16" |
12' |
54" |
1 |
0 |
6 |
0 |
0 |
0 |
|
||
| Cut2 | 16" |
14.5' |
93" |
1 |
0 |
8 |
0 |
0 |
0 |
1099.00
|
||
| Flyer Cat | 19" |
14' |
96" |
2 |
8 |
0 |
0 |
0 |
0 |
1839.50
|
||
| 1910 | 19" |
10' |
48" |
1 |
0 |
4 |
0 |
0 |
0 |
822.00
|
||
| 1911 | 19" |
11' |
60" |
1 |
0 |
6 |
0 |
0 |
0 |
853.00
|
||
| 1912 | 19" |
12' |
72" |
1 |
0 |
8 |
0 |
0 |
0 |
986.50
|
||
| 1913 | 19" |
13' |
84" |
1 |
0 |
8 |
0 |
0 |
0 |
1061.00
|
||
| 1914 | 19" |
14' |
96" |
1 |
0 |
8 |
0 |
0 |
0 |
1132.00
|
||
| 1913 blunt nose ** | 19" |
13' |
96" |
1 |
0 |
8 |
0 |
included |
0 |
1754.00
|
||

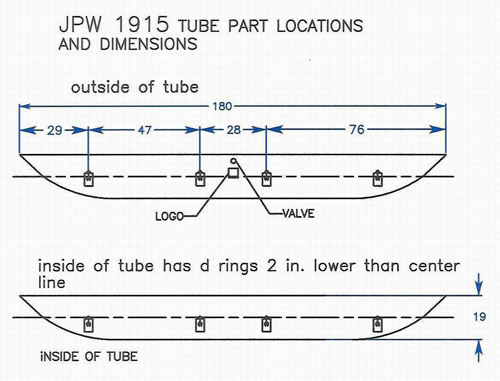

| 1915 | 19" |
15' |
108" |
1 |
0 |
8 |
0 |
0 |
0 |
1156.50
|
||
| royal flush 22 in dia | 22" |
14.5' |
111" |
2 |
8 |
0 |
2 |
included |
1 |
2824.00
|
||
| royal flush 25 in dia | 25" |
15 |
106" |
2 |
8 |
0 |
2 |
included |
1 |
2947.00
|
||
| Big Brother | 25" |
14.5' |
8' |
2 |
8 |
0 |
2 |
included |
1 |
2859.50 |
||
| Daddy | 25" |
13.3 |
10' |
2 |
8 |
0 |
2 |
included |
1 |
2946.50
|
||
| Grand Daddy | 25" |
16.3 |
12.5' |
2 |
12 |
0 |
2 |
included |
1 |
3248.50 |
||
| Daddy | 28" |
14 |
10' |
2 |
12 |
0 |
2 |
included |
1 |
3116.00
|
||
| El Tigre | 28" |
17' |
12.5' |
2 |
12 |
0 |
2 |
included |
1 |
3384.00
|
||
| El Tigre 30 | 30" |
18.3' |
12.5' |
2 |
12 |
0 |
2 |
included |
1 |
3406.00
|
||
| Super El Tigre | 30" |
20.7' |
15' |
2 |
12 |
0 |
2 |
included |
1 |
3667.00
|
||
| snout 36 | 36" |
21.5' |
17.5' |
3 |
14 |
0 |
optional |
included |
2 |
5287.50
|
||
Blunt nose is standard for all cat tube 25 inches in diameter and over. Blunted tubes have a shorter over all length, with the same water line. All 25-36 inch diameter tubes come standard with El Tigre style (blunt nose) cone ends. Grommet end caps are available on request.
**Contact us for other double bottom options for this tube set. The double btm specified in this table is a full double bottom. We also offer a 3 inch wide version for a lot less.
Tube Accessories
Add or subtract these accessories or change the length
for any of the above tube sizes. Handles, grommet strips, D-ring patches, extra
chamber, top wear chafe, and extra length.
Double Bottom Option Prices
Add or subtract this option from the cost of any of the above tube sizes.
Pack Cat, Fat Pack Cat, and Cutthroat frame parts
Draft vs Load for carrying capacity of tubes
Boat specification table
